Press Brake Forming
Press Brake Forming Overview
Press brake forming is a sheet metal fabrication process that uses a press brake machine to bend flat metal into precise angles and shapes.
The metal sheet is placed between a tooling punch and die, and controlled force is applied to bend the material without cutting or removing metal.
Press brake forming is used to create features like:
- V-shaped bends
- U channels
- Various custom angles and profiles
Benefits of Press Brake Forming
Explore how press brake forming provides a precise, efficient way to bend sheet metal into accurate, repeatable shapes without removing material.
Things to consider
High Precision & Accuracy
CNC-controlled ram movement and programmable backgauges ensure exact bend angles and consistent positioning.
Repeatability
Digital programming allows the same bend sequence to be stored and repeated with minimal variation across production runs.
Efficiency & Speed
Automated setups, quick tooling changes, and precise controls reduce setup time and increase forming speed.
Versatility
Interchangeable punches and dies allow forming of different angles, radii, materials, and thicknesses on the same machine.
Lower Production Costs
Efficient operation, minimal material waste, and reduced manual labor lower per-part costs.
Flexibility for Complex Shapes
Multi-step bending sequences and programmable controls allow for complex geometries and custom designs.
Scalability
Quick programming and repeatable setups make it practical for one-off prototypes as well as high-volume runs.
HAAKE’S APPROACH TO Press brake forming
Haake’s press brakes support a wide range of forming applications with consistent accuracy. Automated six axis back gauges ensure precise, repeatable bends across complex part geometries, while electric press brakes improve speed and production efficiency.
We use trumpf for Uncompromising Quality

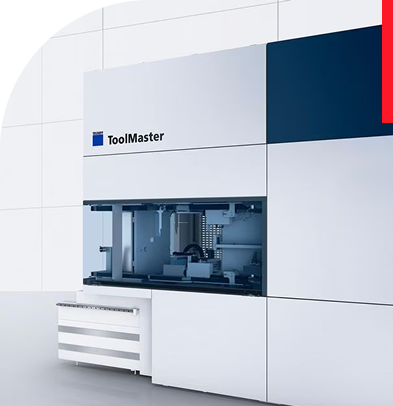

Haake utilizes advanced Trumpf press brake technology, including the TruBend 5230 and TruBend 5170 with ToolMaster automation, to deliver consistent, high-precision forming.
Automated multi-axis backgauges ensure repeatable accuracy across complex geometries, while integrated automation improves efficiency, reduces setup time, and enhances production consistency.
We Deliver Integrated, Full-Service Manufacturing

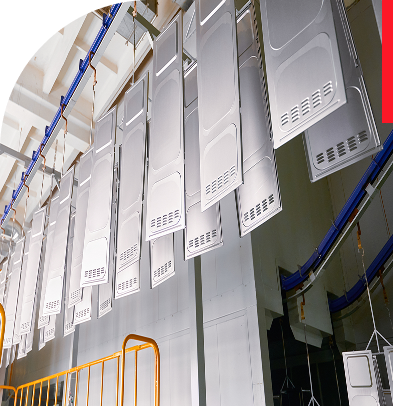

Haake keeps all critical operations in-house, from laser cutting and punching to forming, welding, coating, and assembly. This reduces handoffs, simplifies supply chains, and shortens lead times.
Experience On-Time Delivery & Strong Lead Time Advantage
With a central U.S. location and in-house freight options, our team supports 2-day shipping, coast-to-coast, and reliable just-in-time delivery programs.
Press Brake Forming in the Real World
Press Brake Forming allows manufacturers to produce both simple and complex components quickly while maintaining tight tolerances and consistent quality across important industries.
Data Centers
Cooling system enclosures, power distribution components, server and rack support structures
Electrical & Electronics
Electrical enclosures, control panels, power management housings, and mounting brackets
Construction & Infrastructure
Structural brackets, façade attachment systems, seismic bracing plates, stair and railing components, and electrical enclosures
Industrial Equipment
Machine frames, equipment panels, protective guards, mounting plates, and heavy-duty enclosures
Automotive
EV battery enclosures, heat shields, chassis reinforcement components, seat brackets, and precision mounting frames
